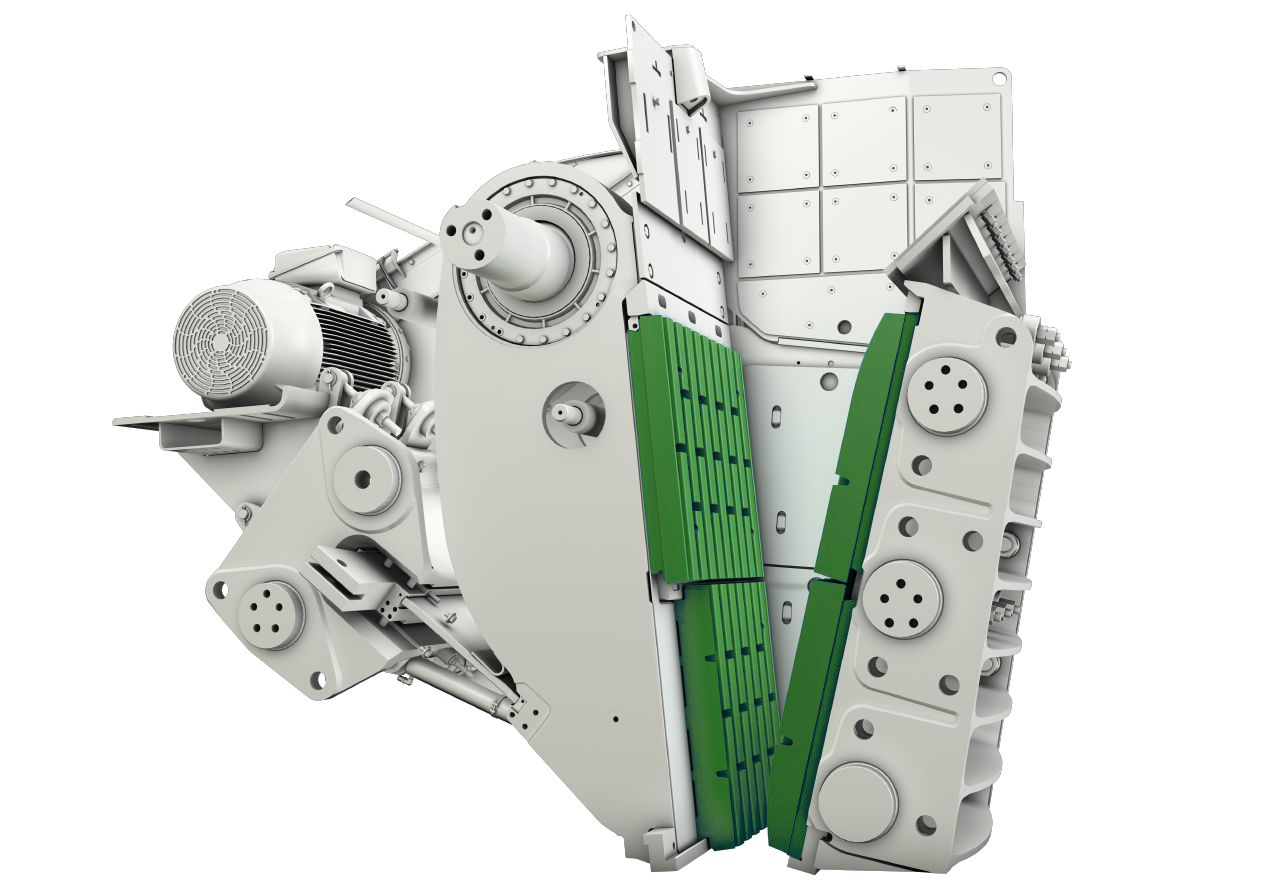

We offer genuine replacement for Metso C series jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. The Metso C series jaw crusher is a compression type crusher. Feed material is crushed between fixed and movable jaw dies, engineered for the toughest feed materials in the primary crushing stage.
Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.
Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.
Metso C140 jaw crusher parts list:
Part Number
Description
Part Number
Description
285302
ECCENTRIC SHAFT C140, C145
7001530833
BOLT HEX ISO4014-M36X160-8.8-A3A
285304
COVER C140
7001530842
BOLT HEX ISO4014-M36X240-8.8-A3A
285312
TIGHTENING BUSHING C140
7001530853
BOLT HEX ISO4014-M36X360-8.8-A3A
312173
SEAL RING C140
7001530887
BOLT HEX ISO4014-M42X150-8.8-A3A
312179
LABYRINTH C140
404107470020
BOLT, HEXAGONAL ISO4014-M36X160-8.8
315974
FLAT PLATE C140
704100032400
HAMMER SCREW DIN261-M48X800-4.6 ER.4716
319142
TOGGLE PLATE L=770 C140BS 319142
704100032700
HAMMER SCREW DIN261-M48X880-4.6 ER.4716
319144
WEDGE PAIR C140,C145
704100033500
HAMMER SCREW DIN261-M48X1130-4.6 ER.471
418604
FILL WEDGE C140B/BS
704100940000
SECURITY RING DIN471-40X1,75
418605
MOUNT WEDGE C140B/BS
704101020000
SECURITY RING DIN471-60X2
418606
LABYRINTH C140
704102176010
EYE BOLT ISO3266-M72X6-WLL 25T
418610
CHEEK PLATE, LOWER C140 418610
704103720000
AP SCRW HEXSCKTHD ISO4762-M16X50-8.8-A
418620
TOGGLE SEAT C140
704107470650
BOLT, HEXAGONAL ISO4014-M36X360-8.8
418622
TIGHTENING WEDGE C140B/BS
704204090000
NUT SELF-LOCKING ISO10511-M42-8-A3A
418828
DAMPER C140B JA C140BS
704205248555
JOINT PIN ISO2340-B-30X130X110-ST
446243
LUG
704405694300
GIB KEY DIN6887-70X36X400 BLANK FORGING
446270
LUG C140B
705501262300
V-BELT SET ISO4184-14XSPC 6300
447858
STICKER C116 C 140 C140 C145 C160 C200 M
705501262500
V-BELT SET ISO4184-12XSPC 7100
495705
JOINT PIN C140B 495705
814328598800
JAW MVBL QUARRY 2P
575484
SPRING ASSY C140, C145, C160, C200
814328598900
JAW, FIXED QUARRY 2P
576460
BUSHING C-SERIE, L=157
949638636700
NUT, CAP C160 386367
577441
BRNG SUPPORT C140
949640496100
THREADED ROD C160B 404961
577483
SPACER C140
949647154100
COMPRESSION SPRING 55X245X640 C140 C145
577484
LOCK PLATE C140
386518-C
THRUST BEARING ASSEMBLY C140,C145,C160
579521
PLATE
446243-A
LUG C140B
579616
DAMPER VAIMENNIN, 60 SHA
446243-B
LUG C140B
580316
PLATE C140
MM0200731
INST RAIL C140 / C145
580714
CONTROL DEVICE C140,C145,C160
MM0200928
CHEEK PLT LOW C140
801988
HYDR HOSE 5705-08-06/SAE100R2T-06/5705-
MM0201096
PROTECTION PLATE C140
803692
HYDR HOSE 5705-08-06/SAE100R2T-06/5705-
MM0201303
SUPPORT C140
803922
HYDR HOSE 5705-04/SAE100R2T-04/57H4-06-
MM0201307
PLATE C140 / C145
905757
FILL WEDGE C140
MM0201703
PROTECTION PLATE C140, C145
914637
SPRING C100..C160, 75-85 SHA
MM0202579
SUPPORT BEARING C140 / C145 H315
914933
SPRING CASING C140B-C160B ER.914933
MM0204024
SPACER ASSY C140
921062
SPRING GUIDE C140BS, C140S, C160B
MM0204313
FEED HOPPER INST C140
921068
RETURN ROD C140BS
MM0206362
BRACKET C140, C145
921069
RETURN ROD C140S
MM0218047
JAW, FIXED QUARRY 1P
928109
FASTENING ITEM C140
MM0218048
JAW MVBL QUARRY 1P
928112
FASTENING ITEM C140
MM0262892
INTERMEDIATE ROD C140 EN10025-S355J0
928306
FASTENING ITEM C140
MM0529751
FASTENING ITEM C140
928380
PITMAN ASSY C140
N01530454
SCREW HEX ISO4017-M20X200-8.8-A3A
928448
FASTENING ITEM C140
N01532878
SCREW HEX ISO4017-M48X90-10.9-UNPLTD
930654
CHEEK PLT UPR C140
N03222250
V-BELT ISO4184-SPC 6700
930763
TIGHTENING WEDGE C140
N03460316
FLEXIBLE COUPLING ROTEX-100 GGG40 95 1 D
947302
HYDR CYL A 53 160/90X360
N05222854
SWITCH KSR3.40/U + KSH48 + KS23.200
947754
ET CTRL CENTER 400/230VAC
N88409000
HAMMER SCREW DIN261-M48X300-4.6 ER.47165
