Metso GP300S Cone Crusher Parts

Metso GP300S Cone Crusher Parts

Product Item:60


  • Product Detail
  • FAQs

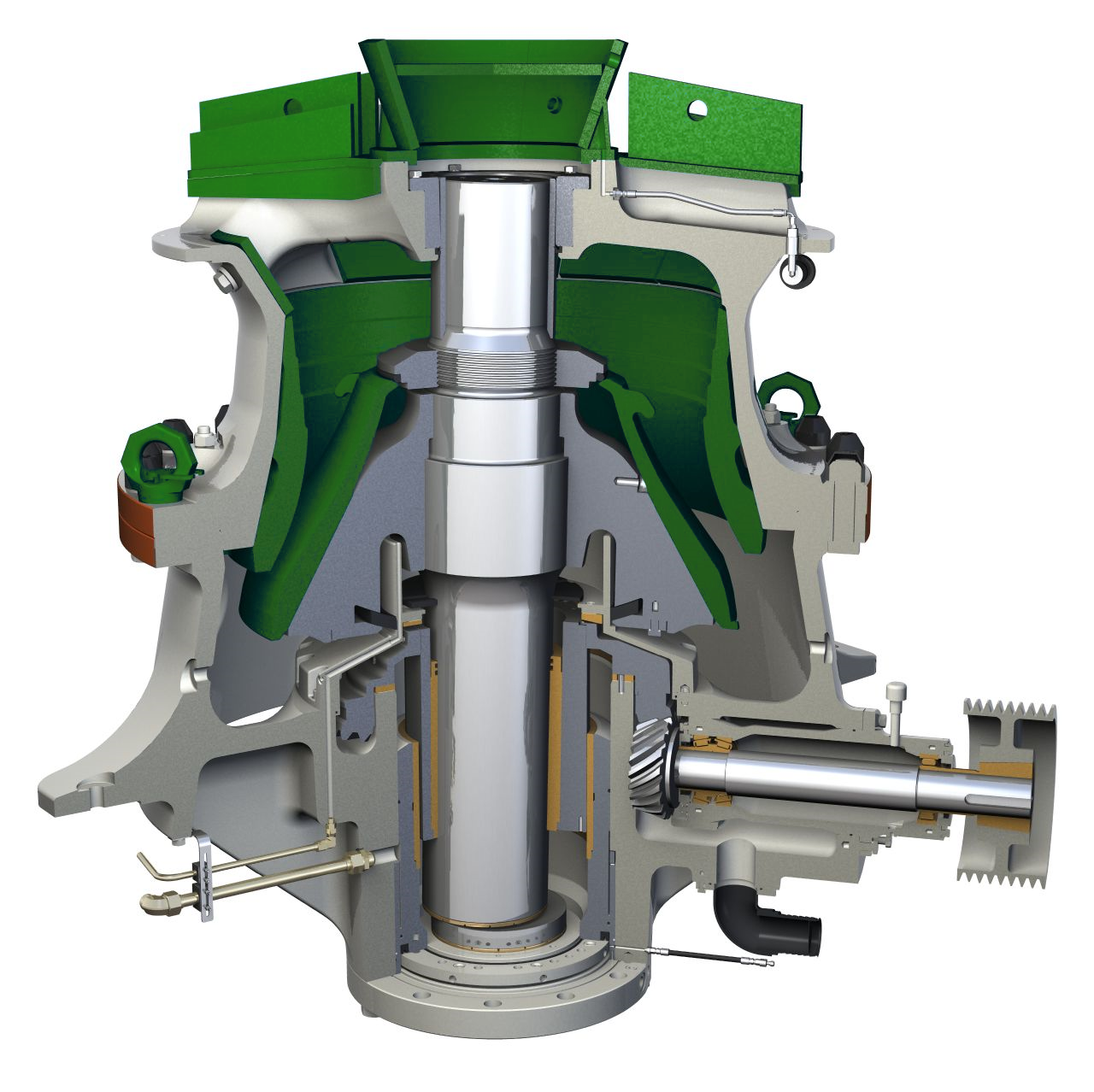

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso GP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg GP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

GP300S Metso Crusher Parts List

Part Number Description
188319 FRAME UPR GP300S
188321 HEAD GP300S
188325 ECCENTRIC BUSHING GP300S 18/25/32/40
292715 MAIN SHAFT GP300S,G3812,G2812
292720 TOP BEARING E18/25/32/40
292818 PROTECTION PLATE GP300S
315928 SLIDE RING G12
315929 PROTECTION BUSHING G3812
446209 SEAL G12 446209
447414 DAMPER GP-SERIES
905246 INTERMEDIATE FRAME GP300S
915829 FRAME ASSY UPR GP300S
915831 MAIN SHAFT ASSEMBLY GP300S
931651 ECCENTRIC SHAFT
936405 MAIN SHAFT ASSY GP300S SPARE PART VERSI
7001530885 BOLT HEX ISO4014-M42X140-8.8-A3A
7002125787 HTR
406303279957 V-BELT PULLEY SPC 560/8 (4535)
704203751000 STUD DIN938-M42X120-8.8
705501260473 V-BELT ISO4184-SPC 3150
706201083421 PRSSR REL VALVE 0532002012 (26 BAR), R9
814318836900 MANTLE C/EC
814318862000 CONCAVE GP300S C 0861-512
814318862100 CONCAVE UPPER C
814329276100 CONCAVE GP300S EC 0861-512
814329276200 CONCAVE UPPER EC
814390336100 MANTLE EC LS
814390336200 CONCAVE SPCL EXTEN GP300S EC-LS (G3812-
949640566600 SCREW M30X380 G3210-SERIES 405666
292819-B PROTECTION PLATE GP300S
MM0214492 CONTROL CABIN 250KW,GP300S
MM0216826 BUSHING 4030X95
MM0227940 ECCENTRIC BUSHING GP300S 28/36
MM0228204 TOP BRNG GP300S 28/36
MM0239535 ECCENTRIC SHAFT GP300S ECCENTRIC SHAFT
MM0262147 CNTRSHFT GP300
MM0347269 CNTRL MOD 41391-454-01-S1FX
N11932363 MANTLE GP300S
814318836900 MANTLE GP300S
N11932364 CONCAVE GP300S C
814318862000 CONCAVE GP300S C
N11932365 CONCAVE UPR GP300S C
814318862100 CONCAVE UPR GP300S C
814329276100 CONCAVE LOWER RING GP300S EC
814329276200 CONCAVE UPR GP300S EC
